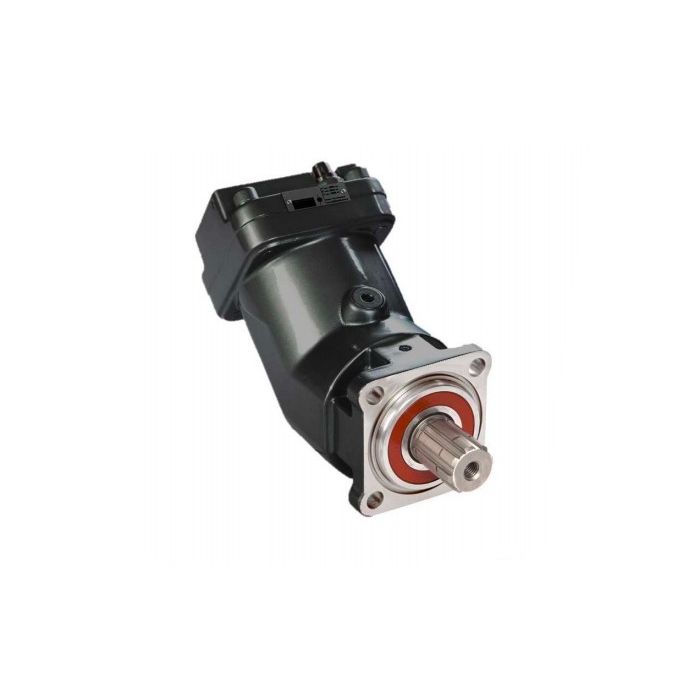

108cc piston motor 1" with spline shaft
€1,009.86
In stock
108cc plunger engine 1" with spline shaft
Technical specifications:
- Stroke volume: 108cc
- Max pressure: 400 bar
- Max peak pressure: 450 bar
- Max revolutions: 4000 rpm
- R1 connection: 1" BSP
- R2 connection: 1" BSP
- Max torque: 600 Nm
- Direction of rotation: right
- Dimension A: 240mm
- Dimension B: 122.5mm
- Dimension C: 60mm
