1" 1/2 hydrauliekslang (2SN) per meter
€20.22
In stock

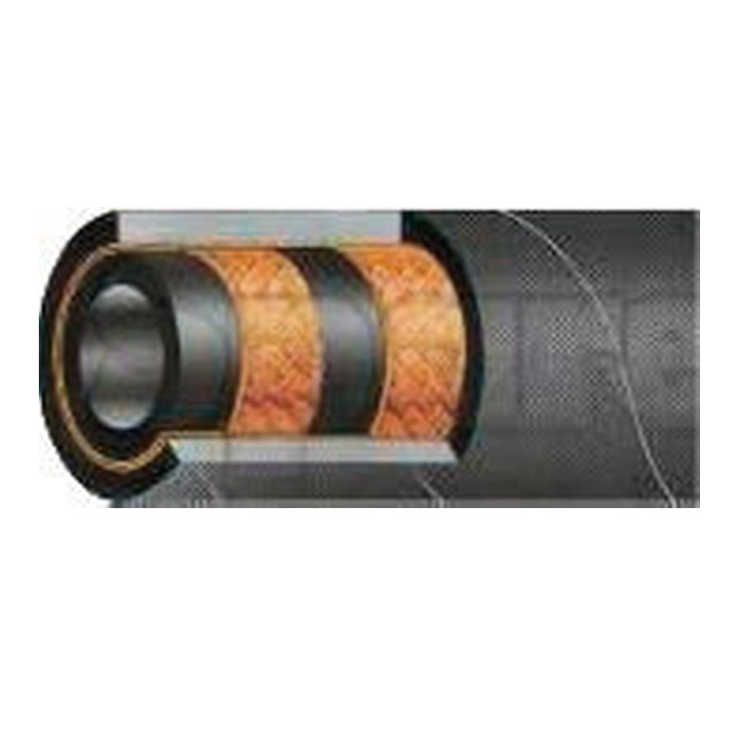

1" 1/2 hydraulic hose (2SN) per meter
- Hose type: EN 853 2SN / SAE 100 R2AT Hose
- Interior composition: special synthetic rubber, resistant to hydraulic oil
- Reinforcement composition: 2 braided layers of steel
- Exterior composition: synthetic rubber, resistant to oil, wear and weather influences
Technical properties:
- DN size: 1" 1/2
- Inside diameter: 38.2 mm
- Outside diameter: 52.8 mm
- Working pressure: 90 bar / 1305 psi
- Burst pressure: 360 bar / 5220 psi
- Vacuum: -0.8 bar
- Bending radius: 500 mm
- Weight: 2.65kg/m
- Working temperature: -40 degrees to + 100 degrees Celsius
