1"1/2 hydraulic hose (4SP) per meter
€39.50
In stock

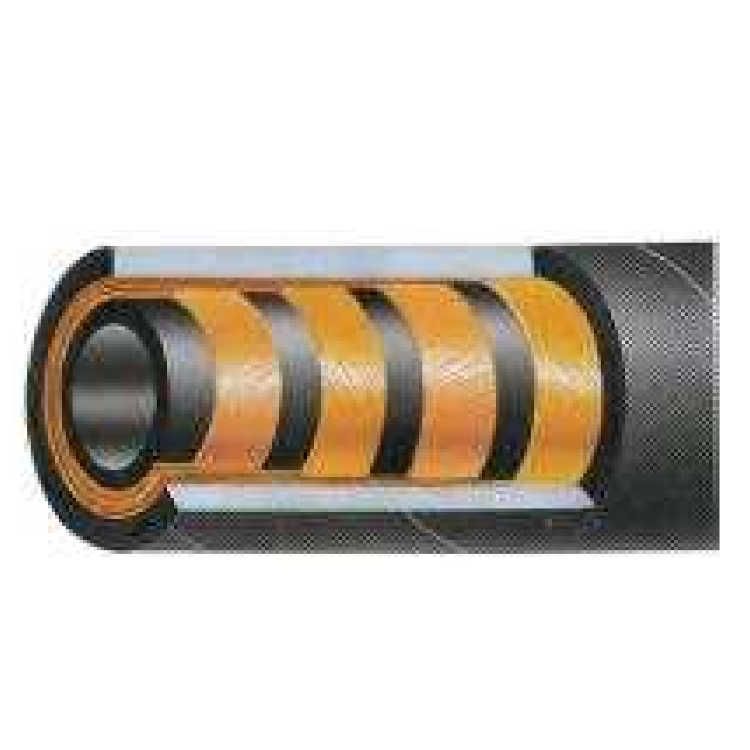

1"1/2 hydraulic hose (4SP) per meter
Technical properties:
- Hose type: EN 856 4SP / SAE 100 R9R-R10 Hose
- Interior composition: special synthetic rubber, resistant to hydraulic oil
- Reinforcement composition: 4 braided layers of steel
- Exterior composition: synthetic rubber, resistant to oil, wear and weather influences
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical specifications:
- DN size: 1"1/2
- Inside diameter: 38.1 mm
- Outside diameter: 57.2 mm
- Working pressure: 185 bar / 2682.5 psi
- Burst pressure: 740 bar / 10730 psi
- Bending radius: 560 mm
- Weight: 3,741 kg/m
