1"1/2 hydrauliekslang (SAE 100 R13) per meter

€55.00
In stock

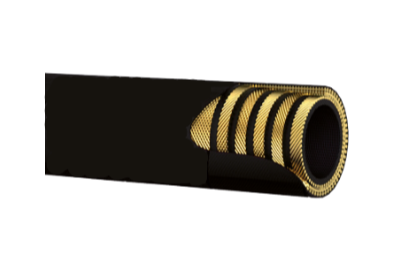

1"1/2 hydraulic hose (SAE 100 R13) per meter

Technical properties:

  • Hose type: EN 856 R13 / SAE 100 R13
  • Inner composition: synthetic rubber
  • Reinforcement composition: 4 braided layers of steel wire for 3/4" and 1". 6 braided layers of steel wire for 1" 1/4, 1" 1/2 and 2".
  • Exterior composition: synthetic rubber, resistant to oil, wear and weather influences
  • Working temperature: -40º C to +100º C

This hydraulic hose complies with various internationally recognized quality marks, including:

  • DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
  • DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
  • DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
  • DNV GL Module B (Navy)
  • ISO9001:2015

Technical specifications:

  • DN size: 1"1/2
  • Inside diameter: 38.1 mm
  • Outside diameter: 57.3 mm
  • Working pressure: 350 bar / 5075 psi
  • Burst pressure: 1400 bar / 20300 psi
  • Bending radius: 500 mm
  • Weight: 4,770 kg/m
*These hoses are specially cut to size and therefore cannot be returned
