1"1/4 hydraulic hose (4SP) per meter
€35.50
In stock
1"1/4 hydraulic hose (4SP) per meter

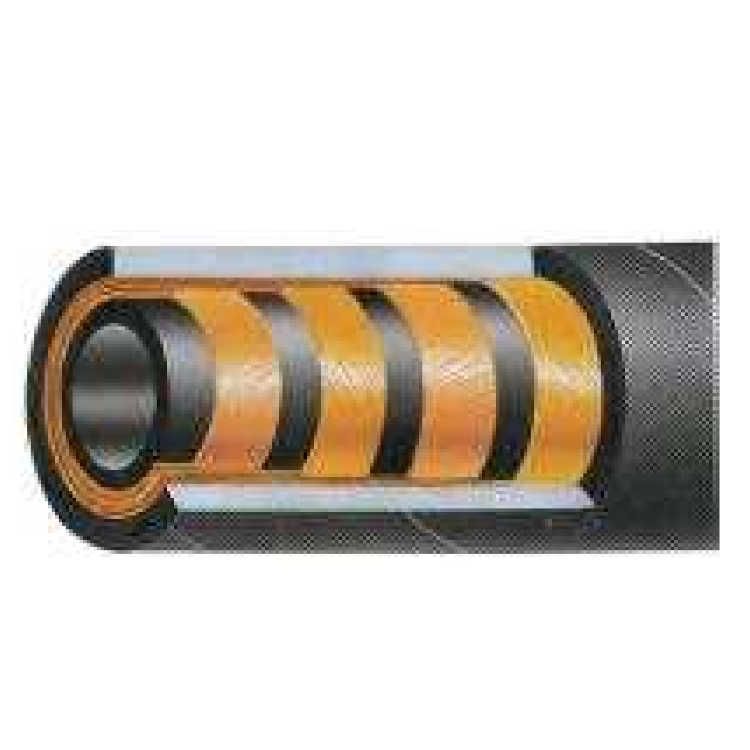

Technical properties:
- Hose type: EN 856 4SP / SAE 100 R9R-R10 Hose
- Interior composition: special synthetic rubber, resistant to hydraulic oil
- Reinforcement composition: 4 braided layers of steel
- Exterior composition: synthetic rubber, resistant to oil, wear and weather influences
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical specifications:
- DN size: 1"1/4
- Inside diameter: 32.2 mm
- Outside diameter: 49.5 mm
- Working pressure: 210 bar / 3045 psi
- Burst pressure: 840 bar / 12180 psi
- Bending radius: 460 mm
- Weight: 3kg/m
