1/2" hydraulic hose (2SC) per metre

1/2" hydraulic hose (2SC) per metre

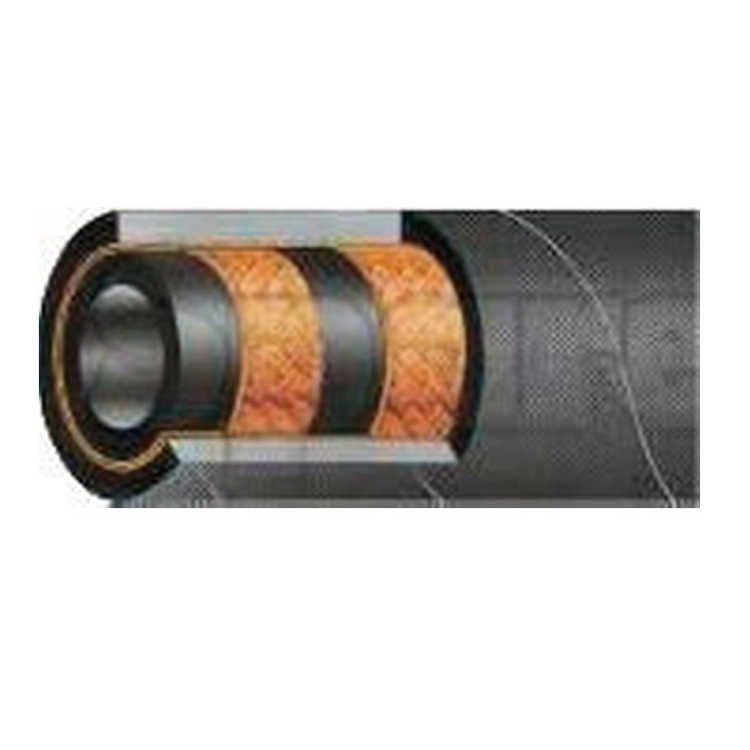

• Hose type: EN 857 2SC
• Composition inner tube: special synthetic rubber resistant to mineral, vegetable and hydraulic oil
• Composition reinforcement: two braids of steel wire
• Composition cover: synthetic rubber, resistant to oil, abrasion and weather

This hydraulic hose complies with various internationally recognized quality marks, including:

• DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
• DNVGL-OS- D101 – Marine and machinery systems and equipment, Edition January 2018
• DNV GL class program DNVGL-CP-0183 –Type approval –Flexible hoses
• DNV GL Module B (Navy)
• ISO9001:2015

Technical specifications:

• DN dimensions: strong> 1/2"
• Inner diameter: 13mm
• Outer diameter: 20mm
• Operating pressure: 275 bar / 3990 psi
• Burst pressure: 1100 bar / 15950 psi
• < strong>Vacuum: -0.95 bar
• Bending radius: 130mm
• weight: strong> 0.45kg/m
• Working temperature: -40 degrees to + 100 celcius
