1/2" hydraulic hose (1SC) per metre
€5.75
In stock

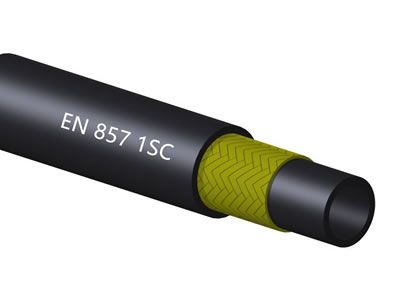

1/2" hydraulic hose (1SC) per metre
- Hose type: EN 857 1SC
- Inner composition: special synthetic rubber, resistant to hydraulic oil
- Reinforcement composition: 1 braided layer of steel
- Outer composition: synthetic rubber, resistant to oil, wear and weather influences
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical features:
- DN size: 1/2"
- Inner diameter: 13mm
- Outside diameter: 19.5mm
- Operating pressure: 160 bar / 2320 psi
- Burst pressure: 640 bar / 9280 psi
- Vacuum: -0.95 bar
- Bending radius: 130mm
- Weight: 0.34kg/m
- Working temperature: -40 degrees to +100 degrees Celsius
