1/2" hydrauliekslang SAE 100 R7 per meter
€9.13
In stock

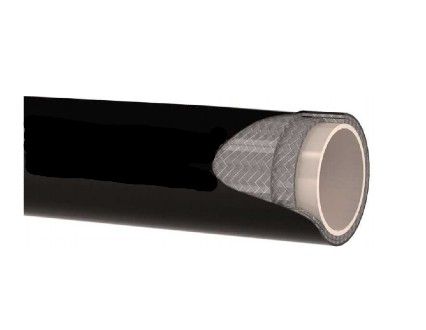

1/2" hydraulic hose SAE 100 R7 per meter
- Hose type: SAE 100 R7
- Inner composition: polyester elastomer
- Reinforcement composition: 1 or 2 braids of synthetic fibers
- Exterior composition: black pricked polyurethane
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical properties:
- DN size: 1/2"
- Inside diameter: 13 mm
- Outside diameter: 20.3 mm
- Working pressure: 140 bar / 2000 psi
- Burst pressure: 560 bar / 8000 psi
- Bending radius: 75 mm
- Weight: 0.215kg/m
- Working temperature: -40 degrees to + 100 degrees Celsius
