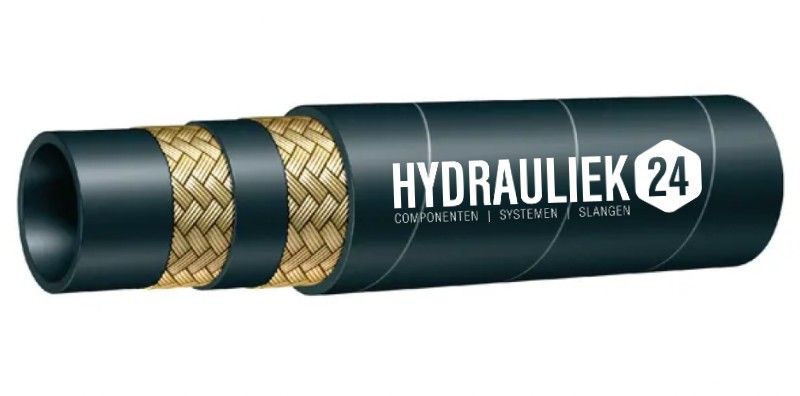

1/4" hydraulic hose (2SC) per meter Hydraulic247

€3.69
In stock

1/4" hydraulic hose (2SC) per meter Hydraulic247

  • Hose type: EN 857 2SC li>
  • Brand: Hydraulic24
  • Composition inner tube: ;special synthetic rubber resistant to mineral, vegetable and hydraulic oil
  • Composition reinforcement: two braids of steel wire
  • Composition cover: ; synthetic rubber, resistant to oil, abrasion and weather

This hydraulic hose complies with various internationally recognized quality marks, including:

  • DNV GL rules for classification –Ships Pt.4 Ch.6 Piping systems
  • DNVGL-OS-D101 –Marine and machinery systems and equipment, Edition January 2018
  • DNV GL class program DNVGL-CP-0183 –Type approval –Flexible hoses
  • DNV GL Module B (Navy)
  • ISO9001:2015

Technical specification:

  • DN size: 1/4"
  • Inner diameter: 6.6mm
  • Outer diameter: 13mm
  • Working pressure: < /strong>400 bar / 5800 psi
  • Burst pressure: 1600 bar / 23200 psi
  • Vacuum: -0.95 bar
  • Bending radius: 75mm
  • Weight: 0.25kg/m
  • Working temperature: -40 degrees to + 100 celcius
*These hoses are specially cut to size and can therefore not be returned
