1/4" hydraulic hose (2SC) per metre
€4.29
In stock

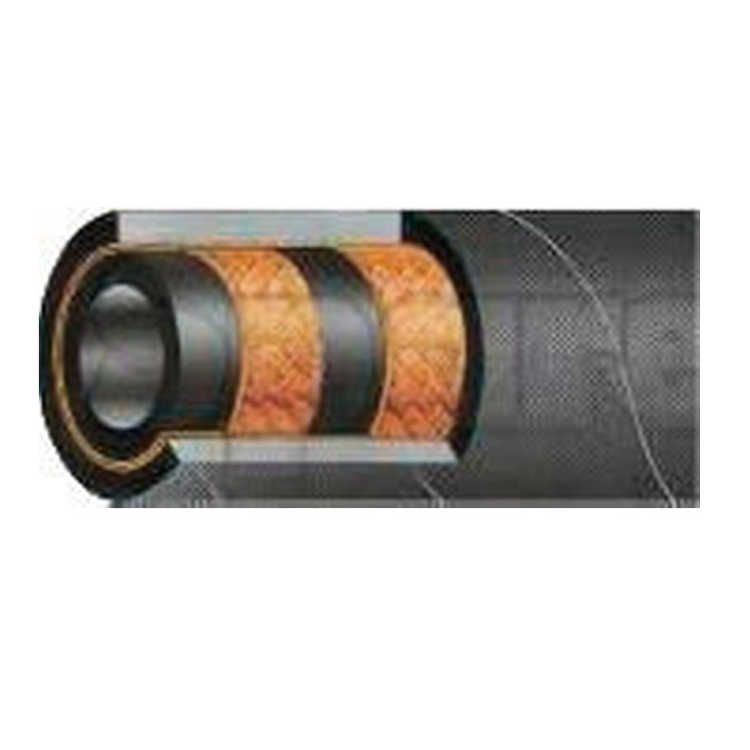

1/4" hydraulic hose (2SC) per metre
- Hose type: EN 857 2SC
- Composition inner tube: special synthetic rubber resistant to mineral, vegetable and hydraulic oil
- Composition reinforcement: two braids of steel wire
- Composition cover: synthetic rubber, resistant to oil, abrasion and weather
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS- D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 –Type approval –Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical specification:
- DN dimensions: 1/4"
- Inner diameter: 6.6mm
- Diameter outside: 13 mm< /li>
- Working pressure: 400 bar / 5800 psi
- Burst pressure: 1600 bar / 23200 psi li>
- Vacuum: -0.95 bar
- Bending radius: 75mm
- Weight: 0.25kg/m
- Working temperature: -40 degrees to +100 degrees Celsius
