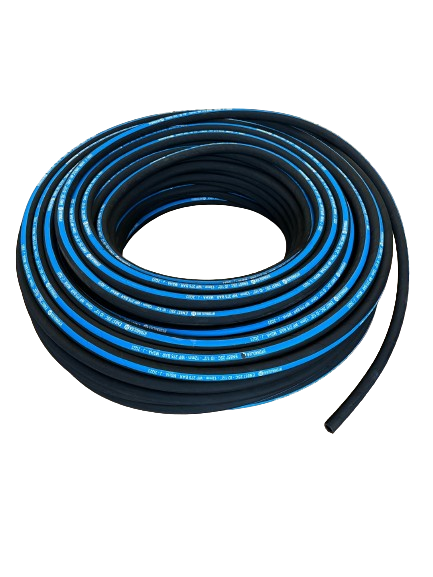

1/4" hydraulic hose (2SC) per 25 meter Hydraulic247
€89.50
In stock
1/4" hydraulic hose (2SC) per 25 meters Hydraulic247
- Hose type: EN 857 2SC
- Brand: Hydraulic247 house brand hose
- Inner composition: special synthetic rubber, resistant to hydraulic oil
- Reinforcement composition: 2 braided layers of steel
- Outer composition: synthetic rubber, resistant to oil, wear and weather influences
This hydraulic hose complies with various internationally recognised quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Marine)
- ISO9001:2015
Technical specifications:
- DN size: 1/4"
- Length: 25 meters
- Inner diameter: 6.6 mm
- Outside diameter: 13 mm
- Working pressure: 400 bar / 5800 psi
- Burst pressure: 1600 bar / 23200 psi
- Vacuum: -0.95 bar
- Bending radius: 75 mm
- Weight: 0.25 kg/m
- Working temperature: -40 degrees to + 100 degrees Celsius
Press table for hoses from Hydraulic247's own brand:
| Snake type | Series | DN mm inches | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" | 1" |
| EN 857 / 2SC - Hydraulics24 | DI2212 | ø crimping | 17.7 | 18.5 | 20.7 | 23.7 | 28 | 31.5 | 39.3 |
