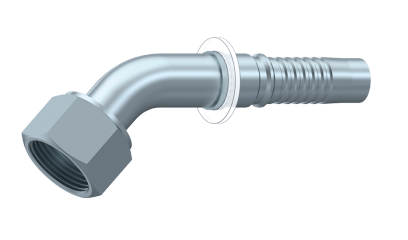

1" DN coupling 45º 1"7/16 12h UNF female with gland

1" DN coupling 45º 1"7/16 12h UNF female with gland

• Material: steel

Technical properties:

• Dimension DN: 1"
• Dimension R1: 1"7/16 12h UNF
• Dimension L: 162 mm
• Dimension L1: 78.5 mm
• Dimension L2: 34 mm
• Dimension HEX 1: 41 mm
• Dimension ØC: 19 mm
