1" hydraulic hose (1SC) per metre
€11.78
In stock

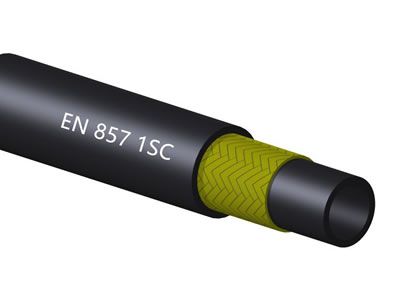

1" hydraulic hose (1SC) per metre
- Hose type: EN 857 1SC
- Inner composition: special synthetic rubber, resistant to hydraulic oil
- Reinforcement composition: 1 braided layer of steel
- Outer composition: synthetic rubber, resistant to oil, wear and weather influences
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical features:
- DN size: 1"
- Inner diameter: 25.7mm
- Outside diameter: 33.6mm
- Operating pressure: 88 bar / 1276 psi
- Burst pressure: 352 bar / 5104 psi
- Vacuum: -0.80 bar
- Bending radius: 230mm
- Weight: 0.52kg/m
- Working temperature: -40 degrees to +100 degrees Celsius
