1" hydraulic hose (4SP) per metre
€27.02
In stock

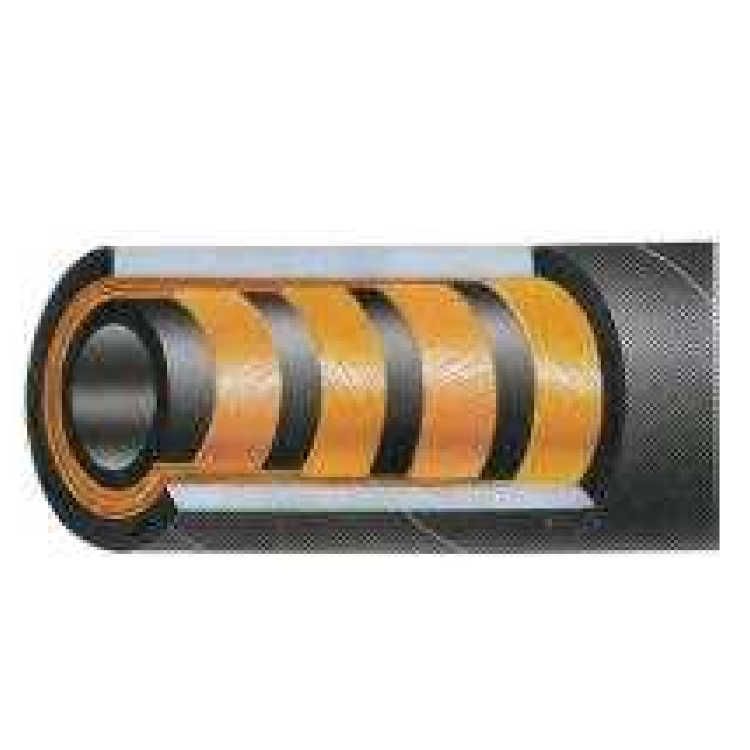

1" hydraulic hose (4SP) per metre
- Hose Type: EN 856 4SP / SAE 100 R9R-R10 Hose
- Inner composition: special synthetic rubber, resistant to hydraulic oil
- Reinforcement composition: 4 braided layers of steel
- Outer composition: synthetic rubber, resistant to oil, wear and weather influences
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical features:
- DN size: 1"
- Inside diameter: 25.5mm
- Outside diameter: 38.5mm
- Operating pressure: 280 bar / 4060 psi
- Burst pressure: 1120 bar / 16240 psi
- Bending radius: 340mm
- Weight: 2kg/m
