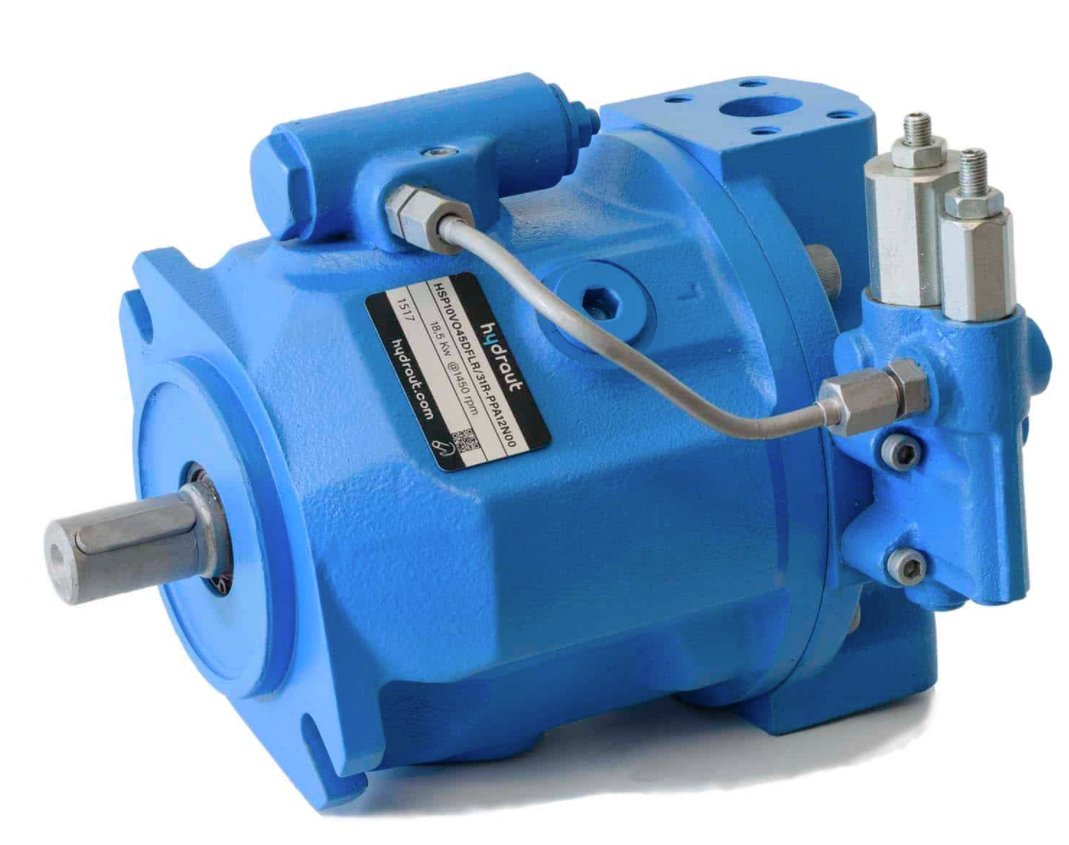

100 DFLR plunger pump right - open circuit - 100cc - 280 bar

100 DFLR plunger pump right - open circuit - 100cc - 280 bar

Technical specifications:

• Displacement: 100 L/min
• operating pressure: 280 bar
• Speed ​​power max.: 2000 rpm
• Max. flow: 200 (53) l/min
• Max. power: 93 (124) kW
• Max. torque: 445 (324)
• Mounting flange: ISO 3019-1 (SAE) 2-hole
• Direction of rotation: right
• Unit: per piece
• Brand: hydraulic247
• Weight: 45kg

*The values ​​shown are valid for an absolute pressure of 1 bar at the suction port. If the flow is reduced or the inlet pressure is increased, the speed can be increased.

Technical data:
Information DFLR scheme: see appendix

1. Enter incoming workload
    Absolute pressure on connection S
    P(abs) min.................0.8 bar (12 psi)
    P(abs) max.................30 bar (435 psi)

2. Outgoing operating pressure range
    Press connection B
    Nominal pressure P(n)...........280 bar (4000 psi)
    Peak pressure         P(max).......350 bar (5100 psi)
    Print data to DIN24312

3. Casing discharge pressure
    Maximum pressure of leaking fluid (at ports L, L1). Maximum 0.5 bar (7 psi) than incoming pressure        at connection S, but not exceeding 2 bar (30 psi) absolute pressure.

4. Flow direction: (S to B)

5. Table of values (theoretical values, rounded values)


Relevant products:

• Press port: 1"1/4 6000 PSI + M14x45 + O-ring
• Suction port: 2"1/2 3000 PSI + M12x45 + O-ring
