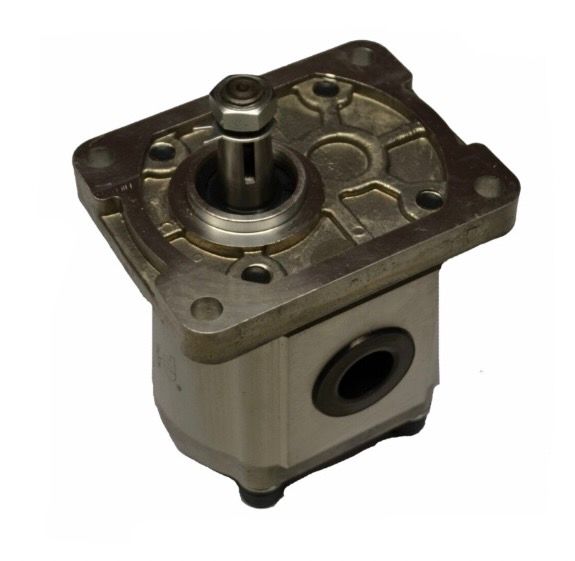

1.1 cc Gear pump right with 1:8 conical shaft group 10

1.1 cc Gear pump right with 1:8 conical shaft group 10

Technical specifications:

• Pump group: 10
• Cc per revolution: 1.1 cc
• Inlet size (R1): 3/8" BSP
• Exhaust size (R2): 3/8" BSP
• Direction of rotation: right
• Pump: gear pump
• Flange and cover Material: aluminum
• shaft: 1:8 conical shaft
• Flange type: Centering Flange 25.4 mm group 10
• Max. pressure: 250 bar
• Max. peak pressure: 300 bar
• Min. speed: 600RPM
• Max. speed: 6000RPM
• Dimension A: 75mm
• Dimension B: 33mm
