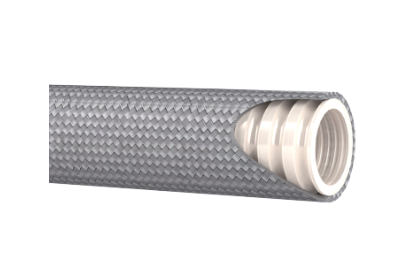

1"1/4 DN PTFE Teflon hose stainless steel braided ribbed
€74.90
In stock
1"1/4 DN PTFE Teflon hose stainless steel braided ribbed
Technical specifications:
- Hose type: PTFE hose
- Inside composition: braided corrugated tube in PTFE, fire resistant, chemically inert. Suitable for use in food, according to FDA standard.
- Reinforcement composition: braided stainless steel AISI 304
Technical specifications:
- DN size: 1"1/4
- Min. inside diameter: 31.4 mm
- Inside diameter max.: 33mm
- Outside diameter min.: 38.5mm
- Outside diameter max.: 41mm
- operating pressure: 48 bar / 696 psi
- Burst pressure: 144 bar / 2080 psi
- Bending radius: 125mm
- Weight: 0.74kg/m
- Working temperature: -70 degrees to + 260 degrees Celsius
