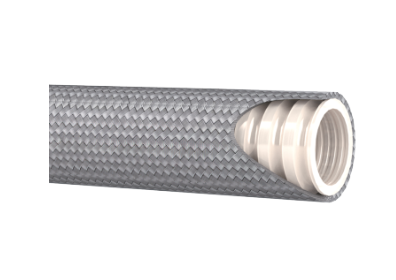

1/2" DN PTFE Teflon hose stainless steel braided ribbed
€23.90
In stock
1/2" DN PTFE Teflon hose stainless steel braided ribbed
Technical specifications:
- Hose type: PTFE hose
- Inside composition: braided corrugated tube in PTFE, fire resistant, chemically inert. Suitable for use in food, according to FDA standard.
- Reinforcement composition: braided stainless steel AISI 304
Technical specifications:
- DN size: 1/2"
- Min. inside diameter: 13 mm
- Inside diameter max.: 14 mm
- Outside diameter min.: 18 mm
- Outside diameter max.: 19.7 mm
- operating pressure: 110 bar / 1595 psi
- Burst pressure: 330 bar / 4785 psi
- Bending radius: 25 mm
- Weight: 0.27 kg/m
- Working temperature: -70 degrees to + 260 degrees Celsius
