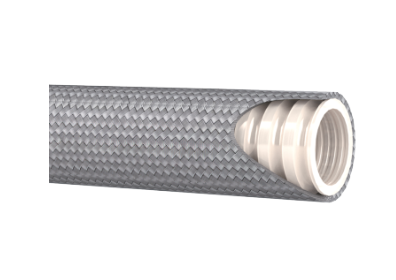

1/4" DN PTFE Teflon hose stainless steel braided ribbed
€16.90
In stock
1/4" DN PTFE Teflon hose stainless steel braided ribbed
Technical specifications:
- Hose type: PTFE hose
- Inside composition: braided corrugated tube in PTFE, fire resistant, chemically inert. Suitable for use in food, according to FDA standard.
- Reinforcement composition: braided stainless steel AISI 304
Technical specifications:
- DN size: 1/4"
- Min. inside diameter: 5.95mm
- Inside diameter max.: 6.45mm
- Outside diameter min.: 9.14mm
- Outside diameter max.: 9.65mm
- operating pressure: 135 bar / 2494 psi
- Burst pressure: 405 bar / 5874 psi
- Bending radius: 18mm
- Weight: 0.15 kg/m
- Working temperature: -70 degrees to + 260 degrees Celsius
