1.4 x Hydraulic pressure booster double-acting | max 289 bar

1.2 x Hydraulic pressure booster double-acting | max 289 bar

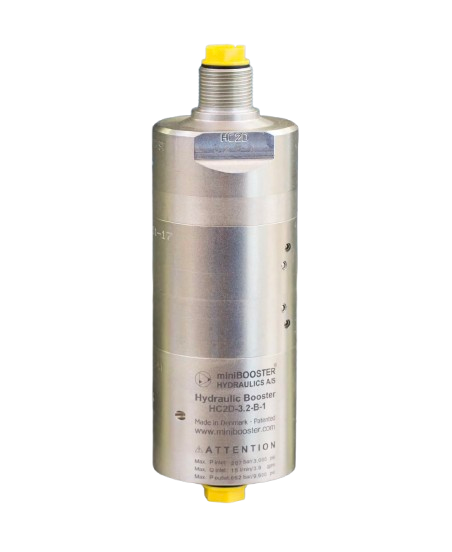

Compact double-acting hydraulic pressure booster suitable for use in applications where building and maintaining high pressure is required. This booster is and increases the delivered pressure to a higher outlet pressure and automatically compensates for oil consumption to maintain the high pressure. The outlet pressure adjustment is carried out by varying the supplied pressureërun.

Technical properties:

• Boosting ratio: 1.4
• Max. amplified Outlet flow: 10.6 l/min
• Max. inlet flow: 15 l/min
• Incoming pressure: 206 bar
• Max. output pressure: 289 bar
• With controlled check valve - Dump Valve DV
• Weight: 3.4kg
• Brand: Minibooster

Connections:
