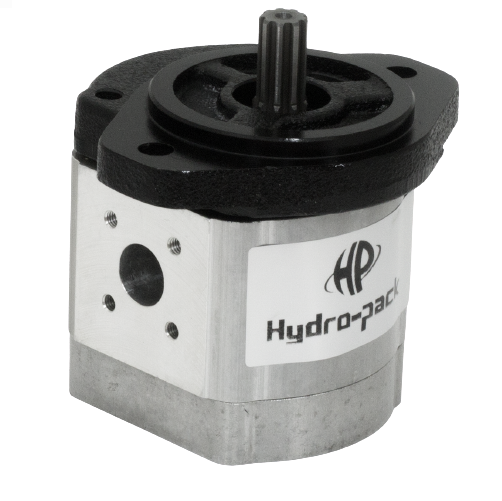

15cc front pump tandem pump left with 9T spline shaft Centering Flange 82.55mm

15cc front pump tandem pump left with 9T spline shaft Centering Flange 82.55mm

This pre-pump is suitable in combination with this one rear pumps

Technical specifications:

• Pump group: 20+20
• Cc per revolution: 15cc
• Direction of rotation: left
• Continuous pressure max. P1: 250 bar
• Max. revolutions: 3000 RPM
• Flange Type: SAE-A, 2-hole, Centering Flange 82.55 mm
• shaft type: 9T 16/32 DP
• Shaft diameter: 15.45mm
• Art. code: H20A15X468
• For more specifications see: attachment
