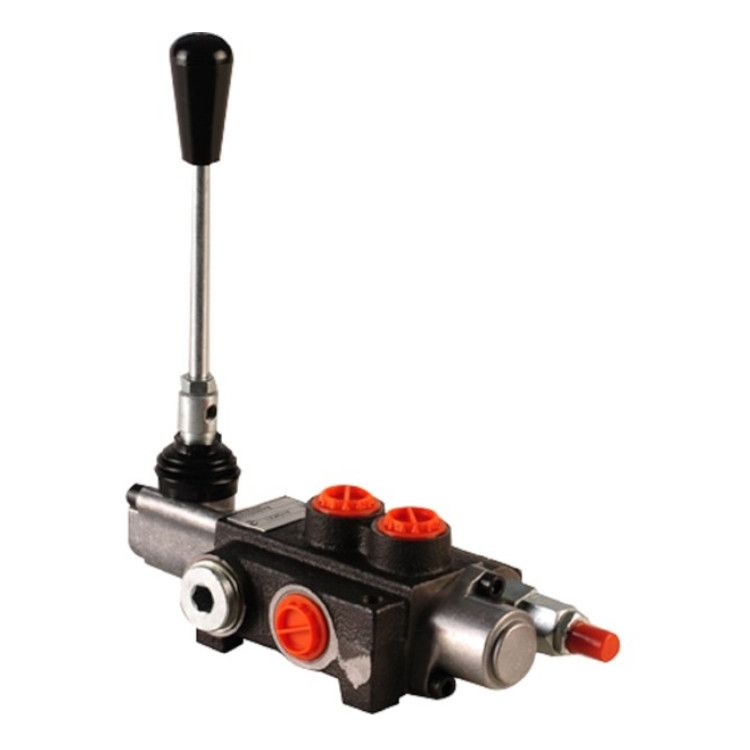

1P40 1 section pilot valve 40 L/min manual 1/2" BSP

€57.46
In stock

1P40 1 section pilot valve 40 L/min manual 1/2" BSP

Technical specification:

  • Type: 1P40
  • Number of sections: 1
  • Pilot valve type: 4/3
  • max. liters per minute: 40
  • Plunger: AB closed and PT open
  • Operation: manual, with spring return (locking optional)
  • P connection: 1/2" BSP
  • T connection: 1/2" BSP
  • A and B connection: 1/2" BSP
  • Pressure relief valve: yes, adjustable 10-250 bar
  • Max pressure: 320 bar
  • Maximum pressure at T: 50 bar
  • Dimension A: 60mm
  • Dimension W: 80mm
  • Dimension C: 85mm
  • Dimension D: 60mm
  • Dimension E: 40mm
  • Dimension F: 193mm
