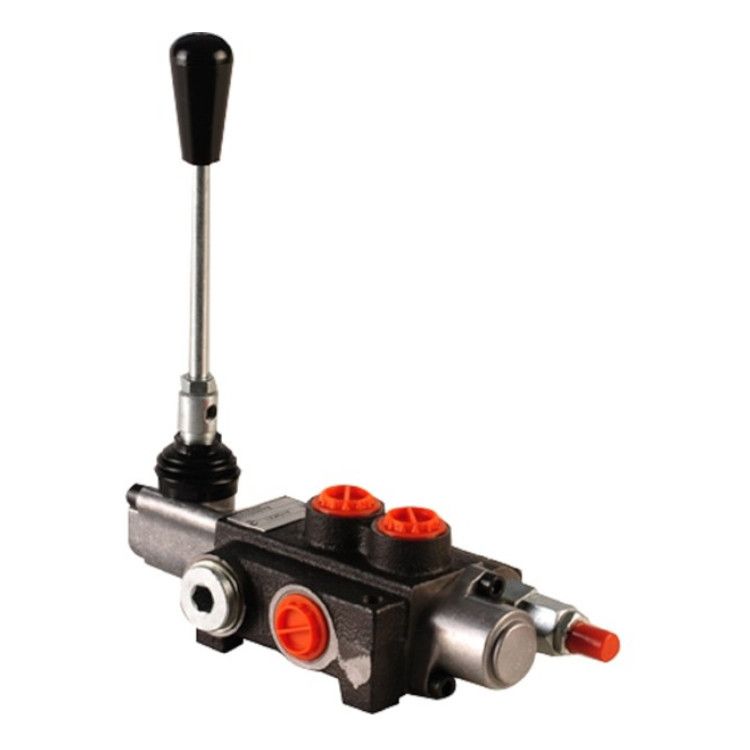

1P40 1 section control valve 40 L/min manual 3/8" BSP
€57.46
In stock
1P40 1 section control valve 40 L/min manual 3/8" BSP
Technical specifications:
- Type: 1P40
- Number of sections: 1
- Control valve type: 4/3
- Max. litres per minute: 40
- Plunger: AB closed and PT open
- Operation: manual, with spring return (detent optional)
- P connection: 1/2" BSP
- T connection: 1/2" BSP
- A and B connection: 3/8" BSP
- Pressure relief valve: yes, adjustable 10-250 bar
- Maximum pressure: 320 bar
- Maximum pressure at T: 50 bar
- Dimension A: 60 mm
- Dimension W: 80 mm
- Dimension C: 85 mm
- Dimension D: 60 mm
- Dimension E: 40 mm
- Dimension F: 193 mm
