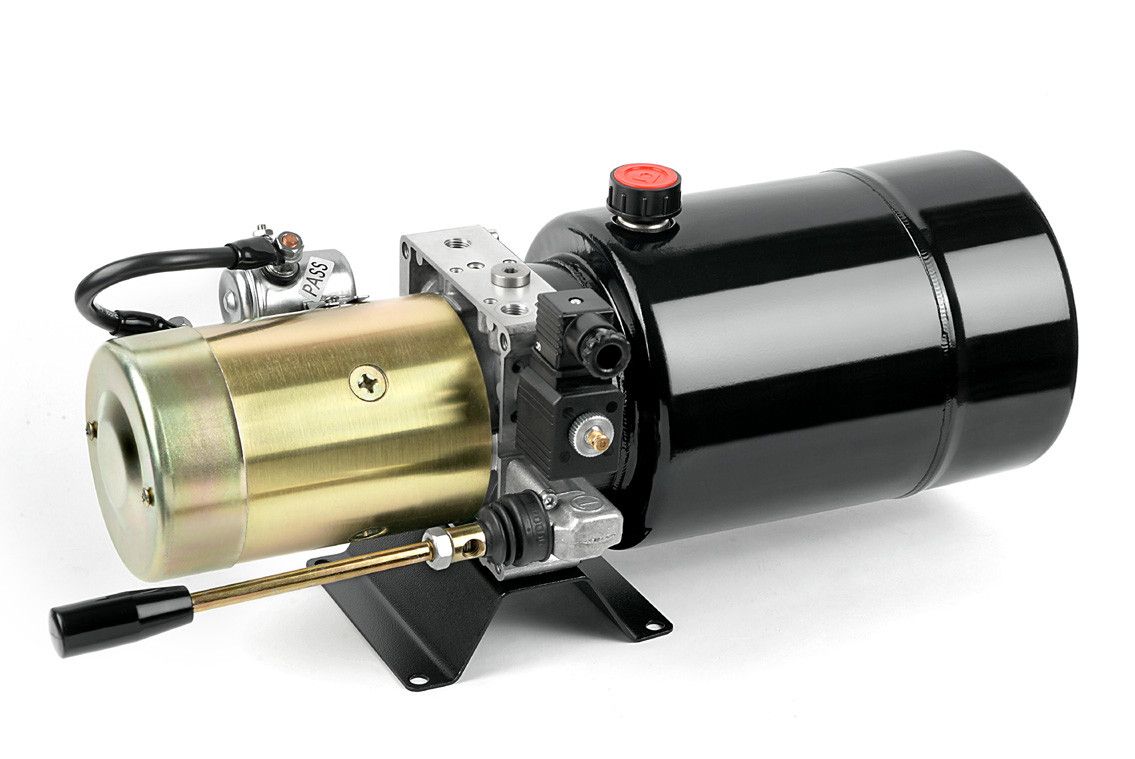

24V 2.0kW hydraulic power pack | 3.2cc pump | double acting circuit
24V 2.0kW hydraulic power pack | 3.2cc pump | double acting circuit
For operating single-acting cylinders or systems. Our power packs can be assembled modularly and are assembled and tested in our workshop.
Standard power pack specifications:
- Engine: 24V
- Assets: 2.0 kW
- Hydraulic circuit: double acting
- Pump stroke volume: 3.2
- Pressure safety: 120 bar
- Max. pressure: 144.38 bar
- Tank: 12 liter horizontal tank
- Volume flow: 8.00 l/min
- Support: Yes
In addition to these standard specifications, there are also a number of configurable features. You can apply these options yourself in our own unique power pack configurator and then order the power pack directly in our webshop. Click here.
Possibilities to choose yourself in the configurator:
- Tank size
- Pump volume (cc)
- Pressure safety settings
- Horizontal or vertical tank
- Add NG6 pilot valves and intermediate valves
- Manometer
- Support
- Single-acting or double-acting
- Return throttling (if single-acting system)
- Lowering valve normally closed or open
- Voltage control coils
- Option to immediately download the schematic and 3D file
Choice in configurator: Pump size
The output (in liters per minute) and the pressure depend on the selected pump and motor: For a 24V motor with a power of 2.0 kW you have the following options:
| Pump cc | 2500RPM | Maximum pressure | ||
| 1.1 | 2.75 | L/min | 250 | bar |
| 1.3 | 3.25 | L/min | 250 | bar |
| 1.8 | 4.5 | L/min | 230 | bar |
| 2.1 | 5.25 | L/min | 200 | bar |
| 2.7 | 6.75 | L/min | 156 | bar |
| 3.2 | 8 | L/min | 131 | bar |
| 3.65 | 9,125 | L/min | 115 | bar |
| 4.2 | 10.5 | L/min | 100 | bar |
| 4.8 | 12 | L/min | 88 | bar |
| 5.8 | 14.5 | L/min | 72 | bar |
| 8 | 20 | L/min | 53 | bar |
Choice in configurator: Tank size
Tank size: at least the contents of the cylinder(s) + pipes. You can choose from a horizontal or vertical tank structure.
Horizontal; 1, 2, 4, 6, 8, 10, 12, 18, 20, 25, 30, 35 liters
Configurator choice: Confirmation support
Supconnection confirmation Yes/No
Configurator choice: Lowering valve control
Lowering valve manually operated (with lever); 12VDC, 24VDC, 230VAC/
Choice in configurator: Type 2/2 lowering valve
- NC: Normally closed: Valve must be energized to lower the cylinder (default)
- NO: Normally Open: Valve must be energized when cylinder is operated. When the valve is not actuated, the cylinder automatically lowers
Choice in configurator: Throttle valve lowering speed
- No
- Adjustable needle throttle: adjustment option to determine the bag speed. With a needle choke, the sink speed depends on the pressure. The higher the pressure, the faster the cylinder descends
- Adjustable pressure compensated throttling: Descent speed can be adjusted and will be equally fast at any pressure/weight
Choice in configurator: Pressure safety setpoint:
The power packs are tested and adjusted to the value you require. The pressure can never be higher than the maximum pressure specified in option 1 or never higher than 250 bar.
Need help putting it together? Contact one of our engineers via chat, contact form or info@hydrauliek24.nl
