24V 2kW Servo power pack | 1.8cc pump | double acting circuit

24V 2kW Servo power pack | 1.8cc pump | double acting circuit

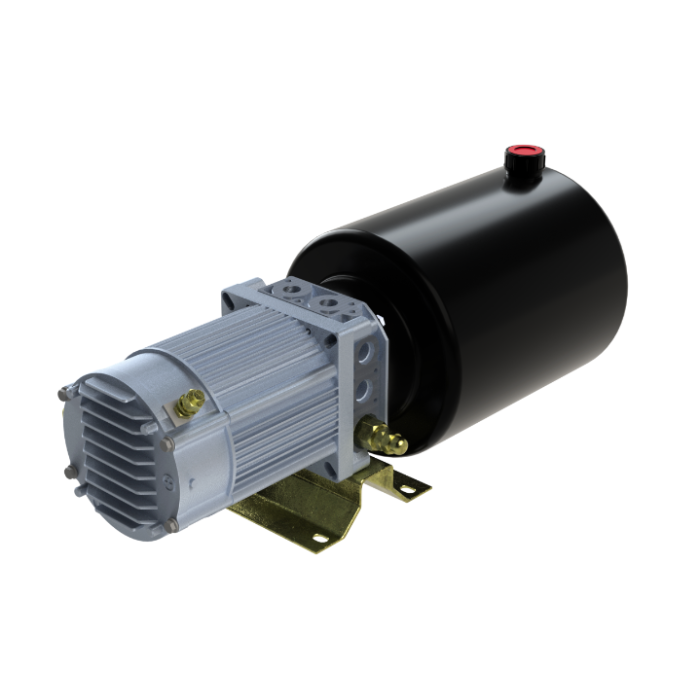

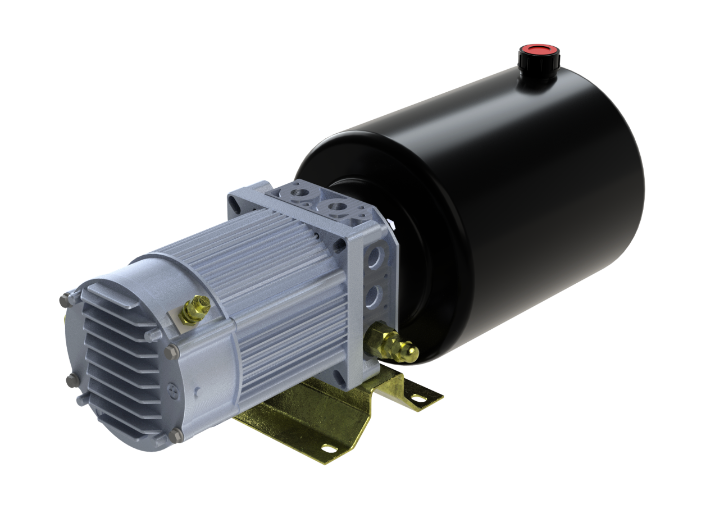

This mini power pack is equipped with a brushless Servo motor, making it possible to regulate the volume flow yourself. The volume flow indicated in the product specifications applies bee maximum speed. The minimum throughput is 15% of the maximum. The speed can be adjusted continuously, so the volume flow can also be adjusted continuously.

Standard power pack specifications:

• Engine: 24V
• Power: 2 kW
• Hydraulic circuit: double acting
• Pump displacement: 1.8cc
• Pressure relief setting: 190 bars
• Max. pressure: 194.44 bar
• Tank: 6 liter horizontal tank
• Volume flow: 5.40 l/min
• Support: Yes

In addition to these standard specifications, there are also a number of configurable features. You can apply these options yourself in our own unique power pack configurator and then order the power pack directly in our webshop. Click here.

Possibilities to change yourself in the configurator:

• Tank size
• Pump volume (cc)
• Pressure relief setting settings
• Horizontal or vertical tank
• Add NG6 pilot valves and intermediate valves
• Manometer
• Support
• Single-acting or double-acting
• Return throttling (if single-acting system)
• Lowering valve normally closed or open
• Voltage control coils
• Option to immediately download the schematic and 3D file
