24V 0.8kW bi-directional hydraulic power pack

€499.50

In stock

Skip to the beginning of the images gallery

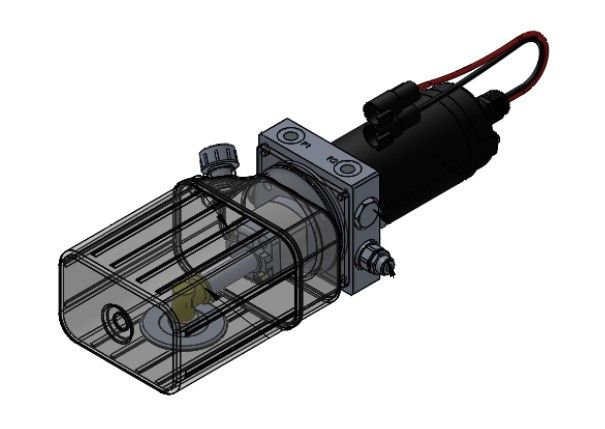

24V 0.8kW bi-directional hydraulic power pack

By reversing the direction of rotation of the motor, you control the hydraulic cylinder/motor in or out. When the unit is not operated, the controlled check valves block so that the oil can flow back into the unit.

Suitable for 1 function. For example, an engine or cylinder. This set can be connected in parallel to a mechanical boat steering pump with steering wheel. No pilot valves required. Compact.

Technical specifications:

Engine power: 0.8 kW
Motor voltage: 24VDC
Pump capacity: 0.5cc
Speed: 3400 RPM
Tank: 1.5 litres
Max. pressure: 200 bar
P1, P2: UNF 7/16"
Dimensions: see drawings
