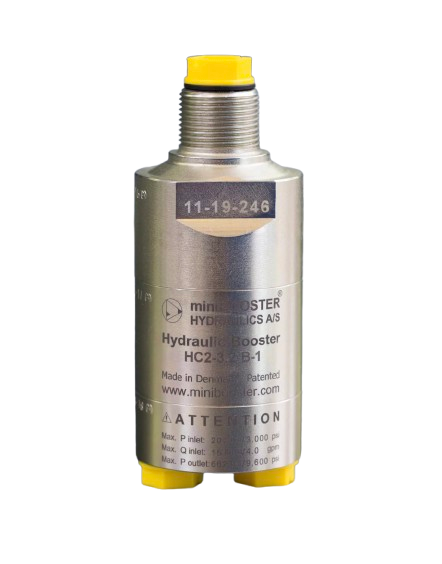

2.5 x Hydraulic pressure booster | max 517 bar

2.5 x Hydraulic pressure booster | max 517 bar
Compact hydraulic pressure booster suitable for use in applications where building and maintaining high pressure is required. This booster increases the delivered pressure to a higher Outlet pressure and automatically compensates for oil consumption to maintain the high pressure. The outlet pressure adjustment is carried out by varying the supplied pressureërun.

Technical properties:

• Boosting ratio: 2.5
• Max. amplified Outlet flow: 2.7 l/min
• Max. inlet flow: 13 l/min
• Incoming pressure: 206 bar
• Max. output pressure: 517 bar
• With controlled check valve - Dump Valve DV
• Weight: 1kg
• Brand: Minibooster

Connections:
