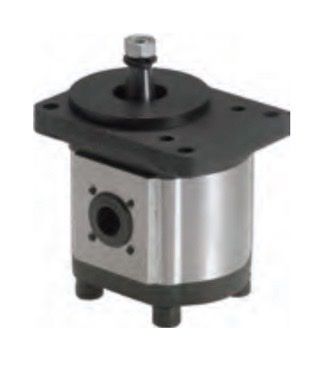

28 cc gear pump right with 1:5 conical shaft, Centering Flange 80 mm
€156.52
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 business day
✓ Wide selection of hydraulic pumps
✓ In stock, shipping within 1 business day
✓ Wide selection of hydraulic pumps
28 cc gear pump right with 1:5 conical shaft, Centering Flange 80 mm
Technical specifications:
- Pump group: 20
- Cc per revolution: 28 cc
- Size &Oslshaft; suction: 40mm
- Size &Oslshaft; press: 30mm
- Direction of rotation: right
- Pump: gear pump
- Flange and cover Material: aluminum
- shaft: 1:5 conical shaft
- Flange type: Centering Flange 80 mm
- Max. pressure: 160 bar
- Max. peak pressure: 200 bar
- Min. speed: 500RPM
- Max. speed: 3000 RPM
- Size &Oslshaft;A: 40mm
- Size &Oslshaft;B: 30 mm
- Size &Oslshaft;D: 20mm
- Dimension A: 133mm
- Dimension B: 62 mm
- Dimension W: M8
