2.8 x Hydraulic pressure booster | max 580 bar

2.8 x Hydraulic pressure booster | max 580 bar

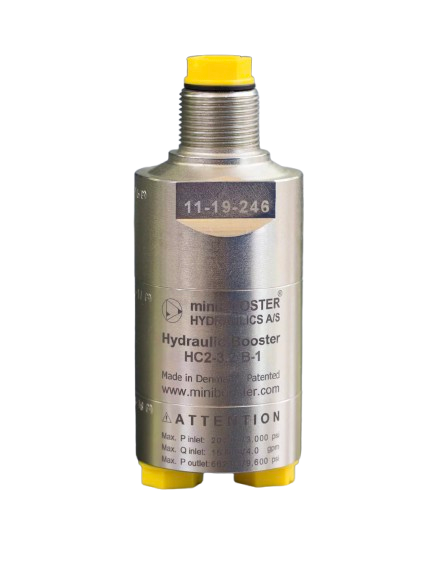

Compact hydraulic pressure booster suitable for use in applications where building and maintaining high pressure is required. This booster increases the delivered pressure to a higher Outlet pressure and automatically compensates for oil consumption to maintain the high pressure. The outlet pressure adjustment is carried out by varying the supplied pressureërun.

Technical properties:

• Boosting ratio: 2.8
• Max. amplified Outlet flow: 2.5 l/min
• Max. inlet flow: 13 l/min
• Incoming pressure: 207 bar
• Max. output pressure: 580 bar
• With controlled check valve - Dump Valve DV
• Weight: 1kg
• Brand: Minibooster

Connections:
