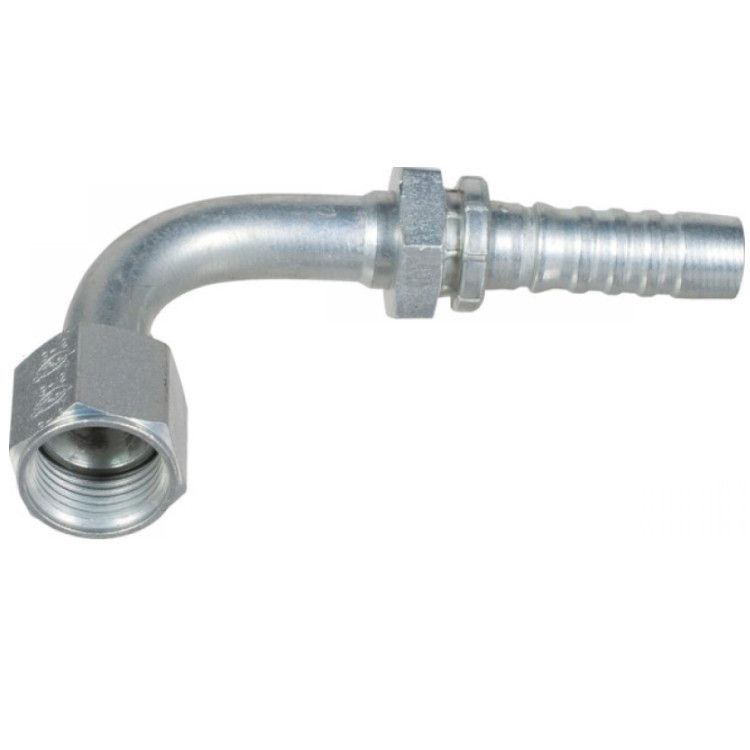

3/4" DN press fitting 1" 1/16 12h UNF 90º angled
€7.41
In stock
3/4" DN press fitting 1" 1/16 12h UNF 90º angled
- For connecting hydraulic hoses and pipes, among other things
- Material: steel
- Inner cone: 37º
Technical specification:
- Dimension DN: 3/4"
- Dimension R1: JIC 1"1/16 12h UNF
- Dimension L: 105mm
- Dimension L1: 39mm
- Dimension L2: 62mm
- Dimension HEX 1: 32mm
- Dimension C: 15mm
