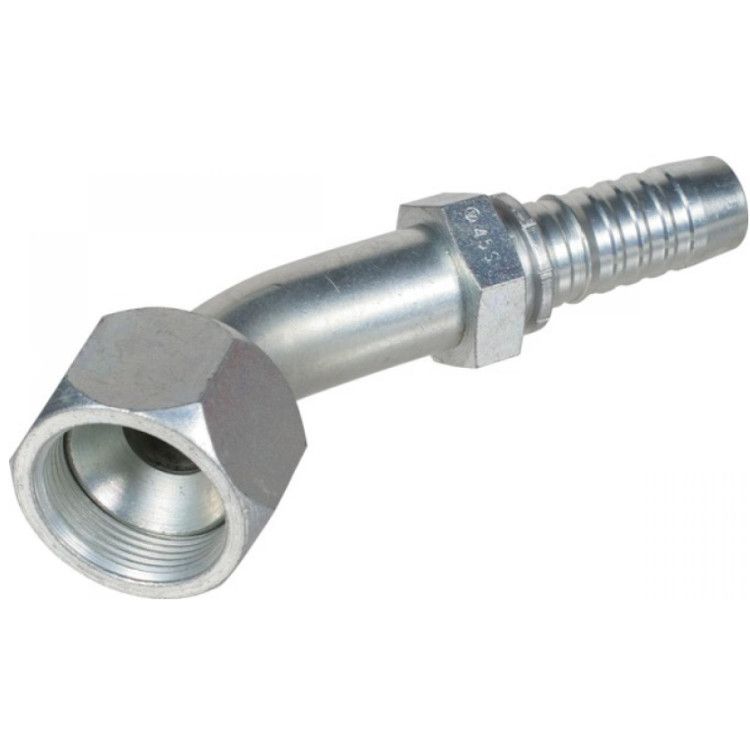

3/4" DN press fitting 1" 5/16 12h UNF 45º
€16.98
In stock
3/4" DN press coupling 1" 5/16 12h UNF 45º
- For, among other things, connecting hydraulic hoses and pipes
- Material: steel
- Inner cone: 37º
Technical specifications:
- Dimension DN: 3/4"
- Dimension R1: JIC 1"5/16 12h UNF
- Dimension L: 115 mm
- Dimension L1: 39mm
- Dimension L2: 30 mm
- Dimension HEX 1: 32 mm
- Dimension ØC: 15 mm
