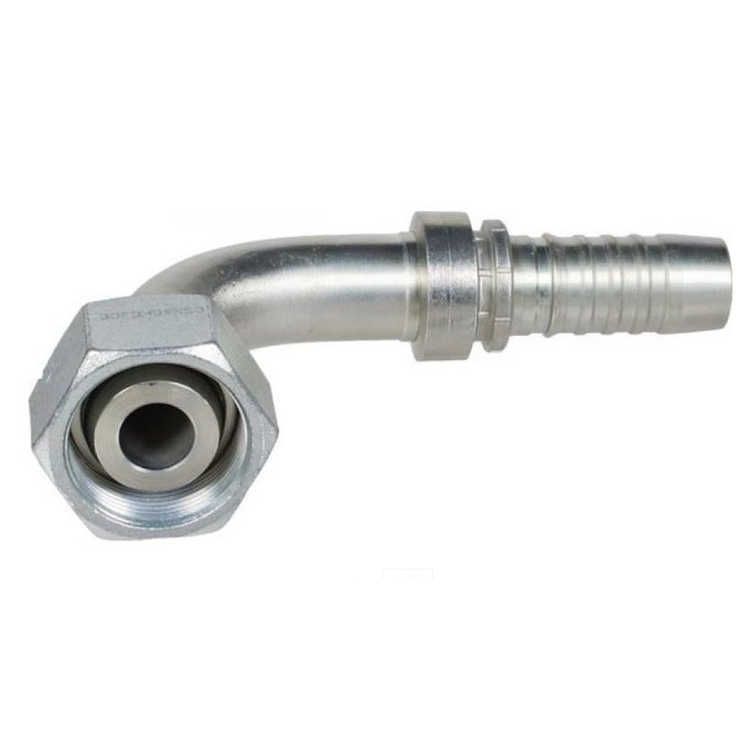

3/4" DN press coupling angled 90° 20S M30x2 with o-ring

Technical specification:

• Dimension DN: 3/4"
• Dimension ØD1: 20mm
• Series: S
• Dimension R1: M30x2
• Dimension L: 97mm
• Dimension L1: 39mm
• Dimension L2: 62mm
• Dimension HEX 1: 36mm
• Dimension C: 15mm
