3/4" hydraulic hose (2SC) per metre
€10.48
In stock
3/4" hydraulic hose (2SC) per metre

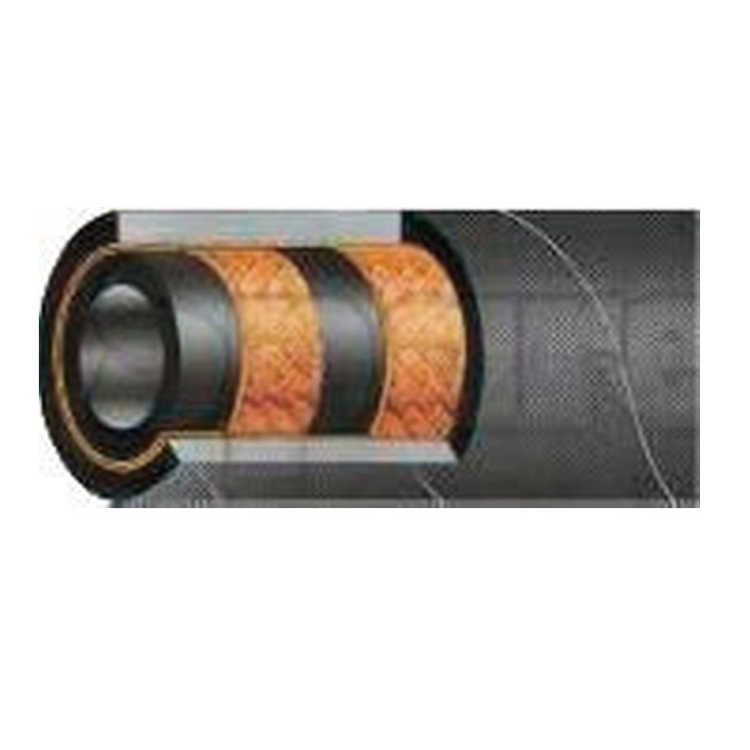

- Hose type: EN 857 2SC
- Composition inner tube: special synthetic rubber resistant to mineral, vegetable and hydraulic oil
- Composition reinforcement: two braids of steel wire
- Composition cover: synthetic rubber, resistant to oil, abrasion and weather
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS- D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 –Type approval –Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical specification:
- DN dimensions: strong> 3/4"
- Inner diameter: 19.5mm
- Outside diameter: 27.6mm
- Operating pressure: 215 bar / 3120 psi
- Burst pressure: 860 bar / 12470 psi
- Vacuum: -0.80 bar
- Bending radius: 200mm
- Weight < /strong>0.76 kg/m
- Working temperature: -40 degrees untill + 100 degrees celcius
