3/4" hydrauliekslang (SAE 100 R13) per meter
€21.00
In stock

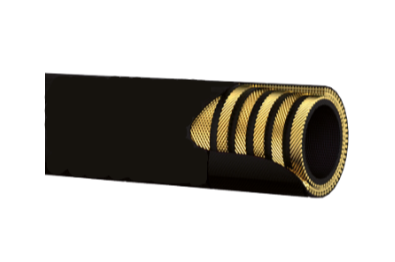

3/4" hydraulic hose (SAE 100 R13) per meter
Technical properties:
- Hose type: EN 856 R13 / SAE 100 R13
- Inner composition: synthetic rubber
- Reinforcement composition: 4 braided layers of steel wire for 3/4" and 1". 6 braided layers of steel wire for 1" 1/4, 1" 1/2 and 2".
- Exterior composition: synthetic rubber, resistant to oil, wear and weather influences
- Working temperature: -40º C to +100º C
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical specifications:
- DN size: 3/4"
- Inside diameter: 19 mm
- Outside diameter: 32 mm
- Working pressure: 350 bar / 5075 psi
- Burst pressure: 1400 bar / 20300 psi
- Bending radius: 240 mm
- Weight: 1,590 kg/m
