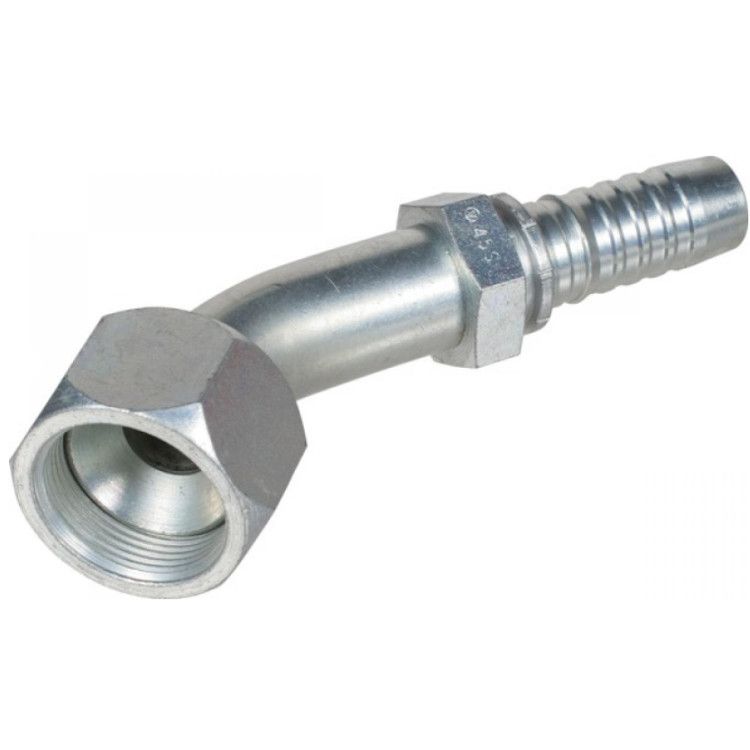

3/8" DN press fitting 3/4" 16h UNF 45º
€4.99
In stock
3/8" DN press coupling 3/4" 16h UNF 45º
- For, among other things, connecting hydraulic hoses and pipes
- Material: steel
- Inner cone: 37º
Technical specifications:
- Dimension DN: 3/8"
- Dimension R1: JIC 3/4" 16h UNF
- Dimension L: 78 mm
- Dimension L1: 29.5 mm
- Dimension L2: 21 mm
- Dimension HEX 1: 24 mm
- Dimension ØC: 7 mm
