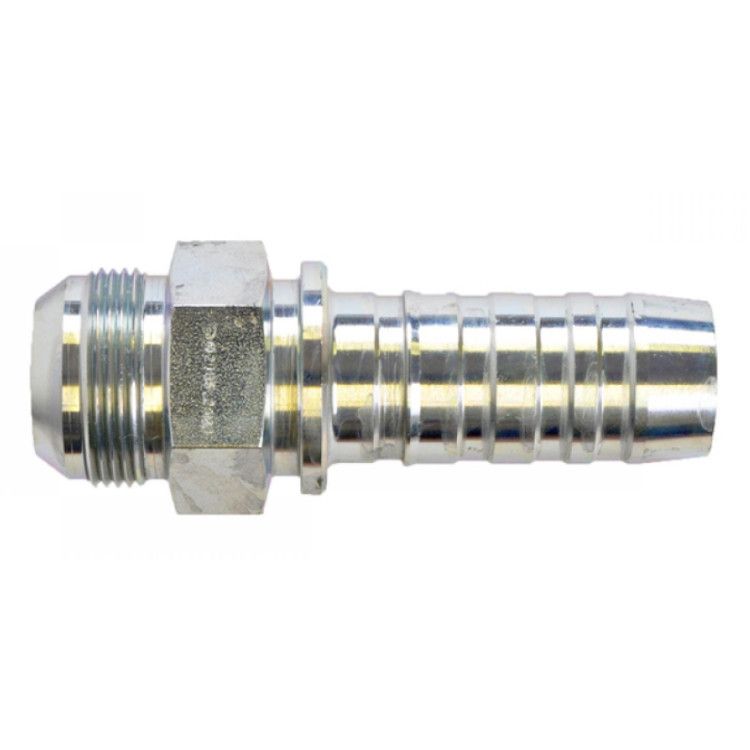

3/8" DN press fitting 3/4" 16h UNF male

3/8" DN press fitting 3/4" 16h UNF male

• For connecting hydraulic hoses and pipes, among other things
• Material: steel
• Inner cone: 37º

Technical specifications:

• Dimension DN: 3/8"
• Dimension R1: JIC 3/4" 16h UNF
• Dimension L: 61mm
• Dimension L1: 29.5mm
• Dimension HEX 1: 22mm
• Dimension C: 7mm
