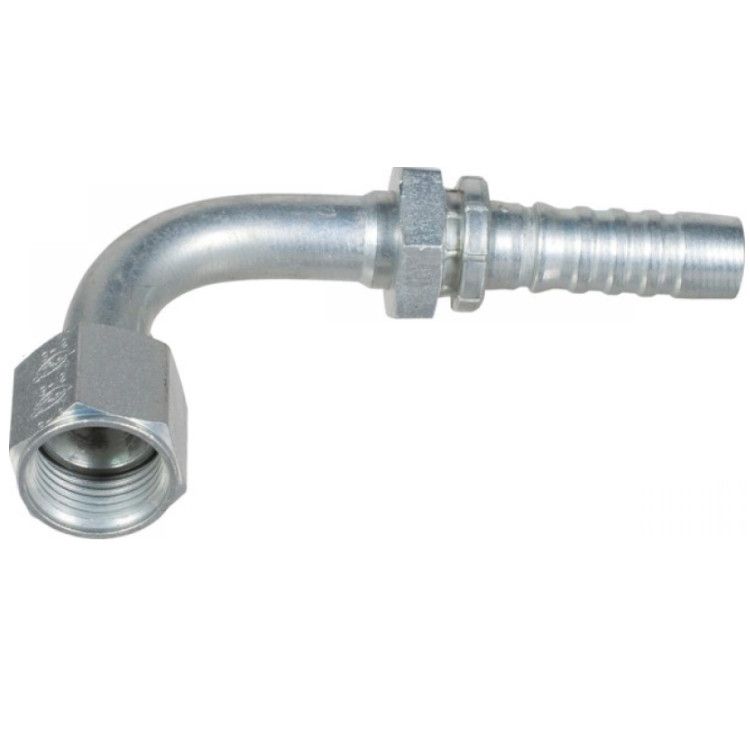

3/8" DN press coupling 5/8" 18h UNF 90º angled

3/8" DN press coupling 5/8" 18h UNF 90º angled

• For, among other things, connecting hydraulic hoses and pipes
• Material: steel
• Inner cone: 37º

Technical specifications:

• Dimension DN: 3/8"
• Dimension R1: JIC 5/8" 18h UNF
• Dimension L: 68 mm
• Dimension L1: 29.5 mm
• Dimension L2: 39 mm
• Dimension HEX 1: 22 mm
• Dimension ØC: 7 mm
