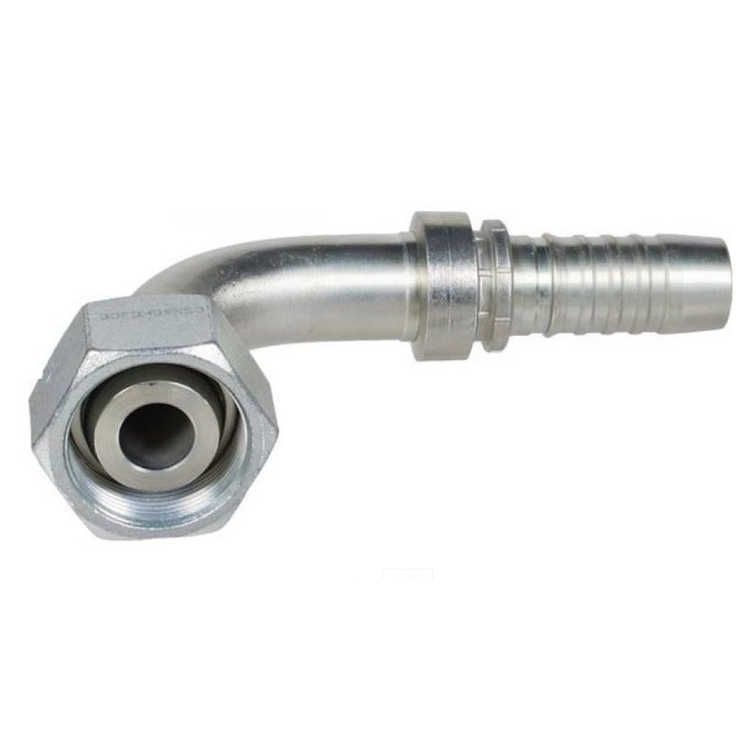

3/8" DN press coupling angled 90° 14S M22x1.5 with o-ring

Technical specifications:

• Dimension DN: 3/8"
• Dimension ØD1: 14mm
• Series: S
• Dimension R1: M22x1.5
• Dimension L: 64mm
• Dimension L1: 29.5mm
• Dimension L2: 38.5mm
• Dimension HEX 1: 27mm
• Dimension C: 7mm
