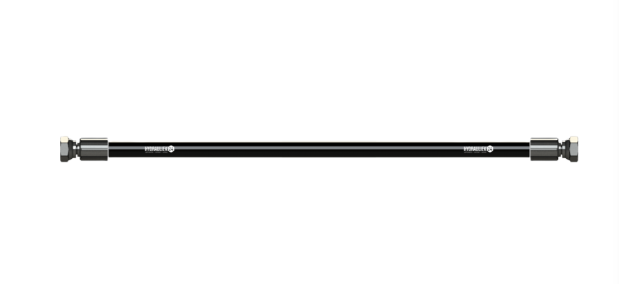

3/8" hydraulic hose 1000 mm with 9/16" UNF swivels

€25.94
In stock
Click here to configure this hydraulic hose

3/8" hydraulic hose 1000 mm with 9/16" UNF swivels

Hose type: EN 857 2SC
Number of steel layers: 2 braided layers of steel
Length: 1000mm
Coupling 1: 3/8" DN press coupling 9/16" 18h UNF female
Coupling 2: 3/8" DN press coupling 9/16" 18h UNF female
DN size: 3/8"
Inside diameter: 9.9 mm
Outside diameter: 16.6 mm
Working pressure: 330 bar / 4785 psi
Burst pressure: 1320 bar / 19140 psi
Vacuum: -0.95 bar
Bending radius: 90 mm
Weight: 0.37kg/m
