3/8" hydraulic hose 700 bar per meter
€49.50
In stock

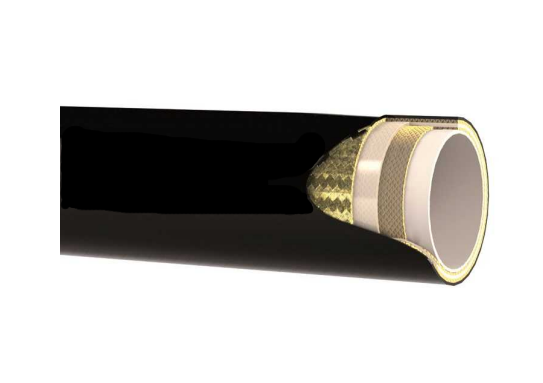

3/8" hydraulic hose 700 bar per meter
Technical specifications:
- Hose type: Thermoplastic hydraulic hose 700 bar
- Composition inside: polyester elastomer
- Composition of reinforcement: one or two braids of "Aramid" fiber plus a braid of steel wire
- Composition of exterior: black polyurethane
Technical specifications:
- DN size: 3/8"
- Inner diameter: 9.8 mm
- Outer diameter: 18.7 mm
- Working pressure: 700 bar / 10000 psi
- Burst pressure: 2800 bar / 40000 psi
- Bending radius: 90 mm
- Weight: 0.330 kg/m
- Working temperature: -40 degrees to + 100 degrees Celsius for air and water based liquids
