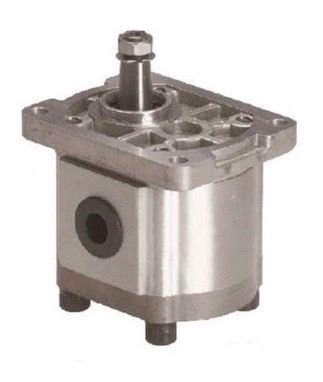

30 cc gear motor bi-directional with 1:8 conical shaft

30 cc gear motor bi-directional with 1:8 conical shaft

Technical specifications:

• Group: 2
• Cc per revolution: 30cc
• Dimension R1: 1/2" BSP
• Dimension R2: 1/2" BSP
• Direction of rotation: bi-directional
• Flange and cover material: aluminum
• shaft: 1:8 conical shaft
• Flange type: fitting edge 36.5 mm group 20
• Working pressure: 200 bars
• Max. Busy: 230 bars
• Max. speed: 2000RPM
• Dimension A: 138mm
• Dimension B: 66mm
