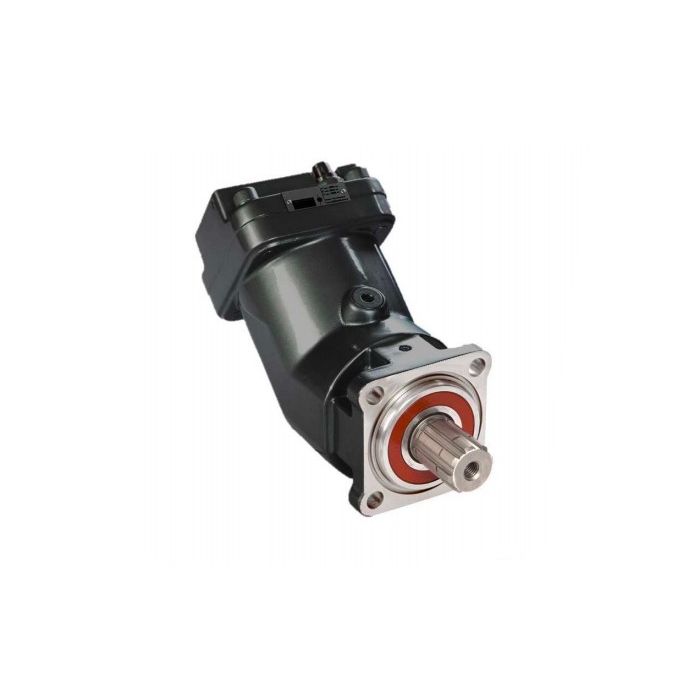

32cc piston motor 3/4" with spline shaft

32cc piston engine 3/4" with spline shaft

Technical specifications:

• Stroke volume: 32cc
• Max pressure: 400 bar
• Max peak pressure: 450 bar
• Max revolutions: 6250 rpm
• R1 connection: 3/4" BSP
• R2 connection: 3/4" BSP
• Max torque: 174 Nm
• Dimension A: 202mm
• Dimension B: 107.5mm
• Dimension C: 54mm
