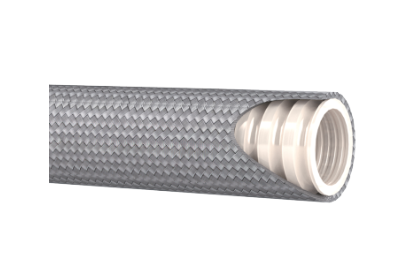

3/4" DN PTFE Teflon hose stainless steel braided ribbed
€31.90
In stock
3/4" DN PTFE Teflon hose stainless steel braided ribbed
Technical specifications:
- Hose type: PTFE hose
- Inside composition: braided corrugated tube in PTFE, fire resistant, chemically inert. Suitable for use in food, according to FDA standard.
- Reinforcement composition: braided stainless steel AISI 304
Technical specifications:
- DN size: 3/4"
- Min. inside diameter: 19.5mm
- Inside diameter max.: 20.7mm
- Outside diameter min.: 25mm
- Outside diameter max.: 27.5mm
- operating pressure: 70 bar / 1015 psi
- Burst pressure: 210 bar / 3045 psi
- Bending radius: 65mm
- Weight: 0.39kg/m
- Working temperature: -70 degrees to + 260 degrees Celsius
