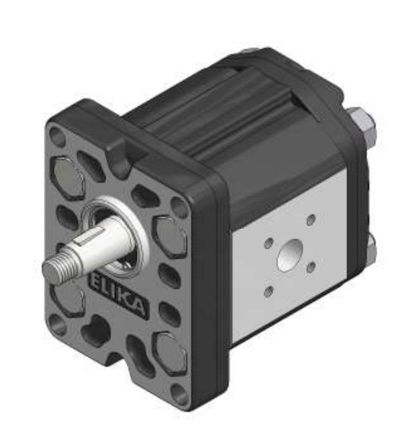

35 cc Marzocchi Elika gear pump right with 1:8 conical shaft

35 cc Marzocchi Elika gear pump right with 1:8 conical shaft

This Marzocchi Elika pump is perfectly suited for all applications that require high pressure and low noise. The Marchozzi Elika series offers pumps from 7cc to 200cc and is interchangeable with the standard ALP series and GHP series. The helical gears ensure continuousïity of movement despite the low number of teeth.

Technical specifications:

• Brand: Marzocchi Elika
• Pump group: 20
• Cc per revolution: 35cc
• Flow at 1500 RPM: 52.6 l/min
• Max. Pressure at P1: 150 bar
• Max. Pressure at P2: 165 bar
• Max. Pressure at P3: 180 bar
• Min. speed: 200 RPM
• Max. speed: 2200 RPM
• Noise level at 1500 RPM (P1): 58 dB
• Dimension L: 72mm
• Dimension M: 144 mm
• Dimension D: 20 mm
• Dimension H: 40 mm
• Dimension d: 15mm
• Dimension h: 35 mm
• Appendix: click here
