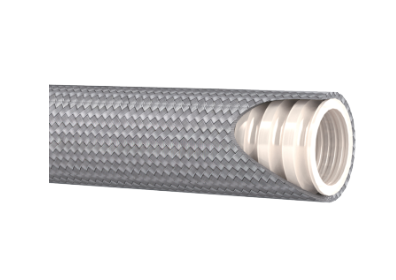

3/8" DN PTFE Teflon hose stainless steel braided ribbed
€22.90
In stock
3/8" DN PTFE Teflon hose stainless steel braided ribbed
Technical specifications:
- Hose type: PTFE hose
- Inside composition: braided corrugated tube in PTFE, fire resistant, chemically inert. Suitable for use in food, according to FDA standard.
- Reinforcement composition: braided stainless steel AISI 304
Technical specifications:
- DN size: 3/8"
- Min. inside diameter: 10mm
- Inside diameter max.: 11mm
- Outside diameter min.: 14.7mm
- Outside diameter max.: 16.2mm
- operating pressure: 125 bar / 1740 psi
- Burst pressure: 375 bar / 5436 psi
- Bending radius: 20mm
- Weight: 0.21 kg/m
- Working temperature: -70 degrees to + 260 degrees Celsius
