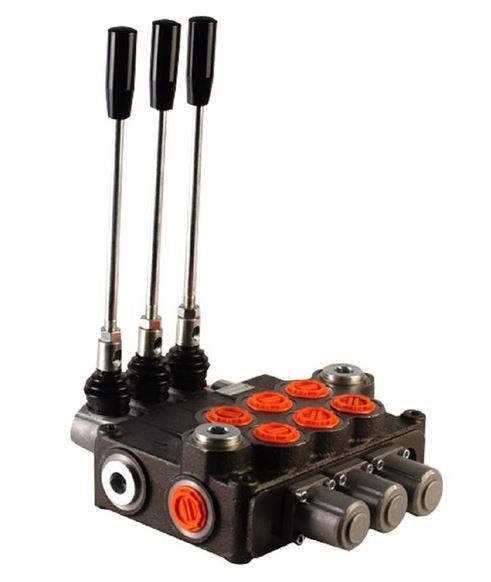

3P120 3 section control valve 120 L/min manual operation
€391.11
In stock
3P120 3 section control valve 120 L/min manual operation
Technical specifications:
- Type: 3P120
- Number of sections: 3
- Control valve type: 4/3
- Max. liters per minute: 120
- Plunger: A = AB closed and PT open
- Operation: manual, spring return (detent optional)
- P connection: 1" BSP
- T connection: 1" BSP
- A and B connection: 1" BSP
- Pressure relief valve: yes, adjustable 125-250 bar
- Maximum pressure: 320 bar
- Maximum pressure at T: 25 bar
