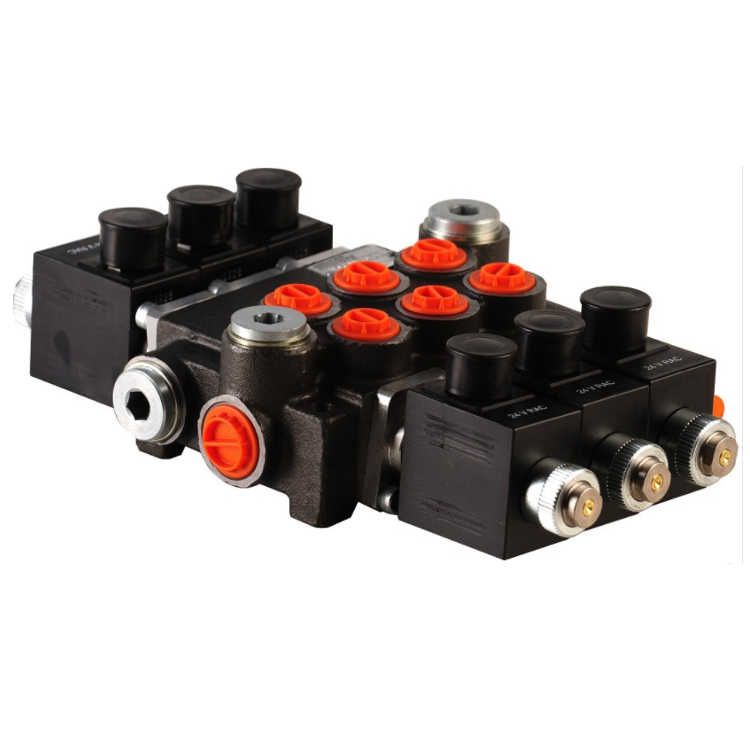

3Z80 3 section control valve 80 L/min 24V electric
€689.50
Out of stock
3Z80 3 section control valve 80 L/min 24V electric
- Application: for operating cylinders, among other things
Technical specifications:
- Model: 3z80
- Number of sections: 3
- control valve type: 4/3
- Max. liters per minute: 80
- Spool: AB closed and PT open
- Operation: 24V electric
- P connection: 3/4" BSP
- T connection: 3/4" BSP
- A and B connection: 1/2" BSP
- Pressure relief valve: yes, adjustable 10-250 bar
- Maximum pressure P: 250 bar
- Maximum pressure T: 50 bar
- Maximum pressure A/B: 300 bar
- Operation: Spring centering
