4.5kW, 24V, electric motor with pre-mounted gear pump, pump group 2

4.5kW, 24V, electric motor with pre-mounted gear pump, pump group 2

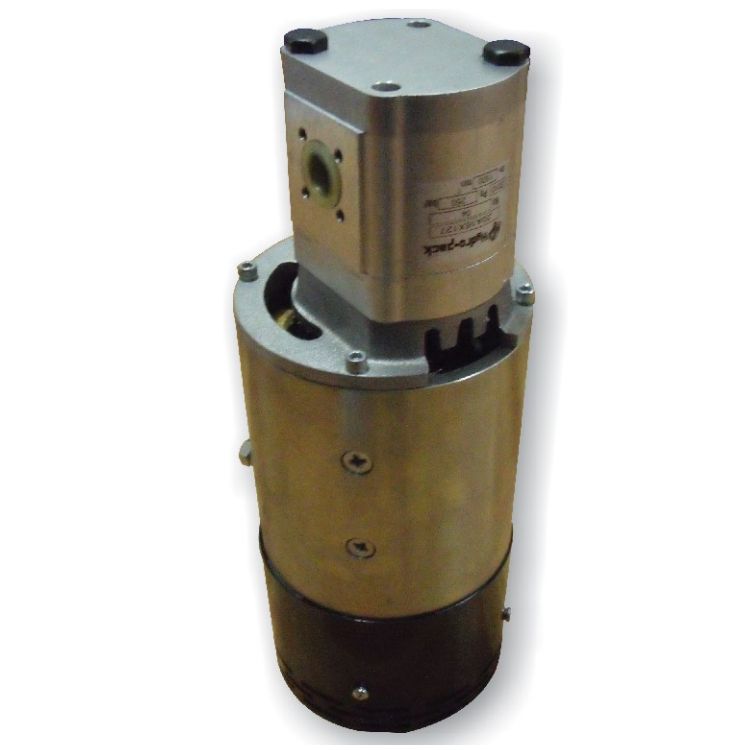

Complete motor/pump combination equipped with 4.5 kW electric motor and 6,3cc gear pump group 2. The motor used in this type of power pack has been specially developed so that no lantern piece and flexible coupling are required. The pump is mounted directly on the engine. Order this standard variant of electric motor or customize it yourself in the configurator with your own desired specifications.

Standard pump size: 6.3cc (pump group 2)

Choice 1 configurator: Pump size (cc/rev):

Indicate via the configurator the desired capacity of the gear pump that should be mounted on the motor/pump combination.

Technical properties of electric motor:

• Model: HPPM-4.5-24
• Voltage: 24V
• Power: 4.5 kW
• Speed: 2000 RPM

Technical properties of gear pump:

• Pump group: 2
• Cc per revolution: 4.5-12 cc
• Direction of rotation: right
• Pump type: gear pump
• Axle: flat axle
• Inlet connection pump flange: 30 / 40 mm (3 or 4 holes) | Depending on the pump size
• Outlet connection pump flange: 30 mm (3 or 4 holes)
