4 ton 24V hydraulic trailer tipper set with cylinder stroke 700

4 ton 24V hydraulic trailer tipper set with cylinder stroke 700

In addition to standard and modular power packs, Hydrauliek24 recently started offering complete sets. In this case, specifically for making a tipper tipper. The set is delivered complete with power pack, cylinder, hose, button box and accessories.

The basis of this set is a mini power pack with the following specifications:

• Motor power: 2 kW
• Motor voltage: 24V DC
• Pump capacity: 2.1 CC
• Tank: 4 liter plastic
• Maximum pressure: 210 bar
• Drop valve: 24V
• Lowering speed throttle valve: adjustable needle throttle

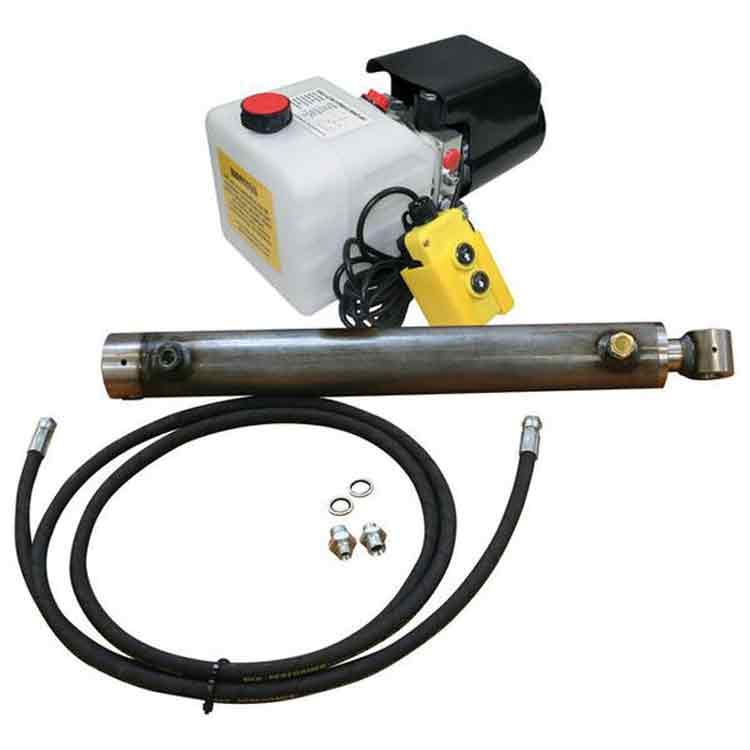

This set comes complete and consists of the following products:

• 1x Mini power pack 24V 2 kW - 2.1 cc
• 1x Double-acting cylinder 50x30x700 with mounting
• 1x 1/4'' hydraulic hose 1500 mm with 8L DKOL - DKOL 90 couplings
• 2x 3/8" BSP - 8L (M14x1.5) male screw coupling
• 1x Button box for single-acting power pack 24V 2 buttons
• 1x Air release valve for hydraulic cylinder 3/8" BSP
