400V kloofmachine set 10 ton, 2,2kW

230V splitting machine set 10 tons, 2.2kW

This complete set consists of all the necessary hydraulic parts to build a safe and well-functioning splitter. The parts in the set are matched to each other so that you can be sure that everything functions optimally after installation.

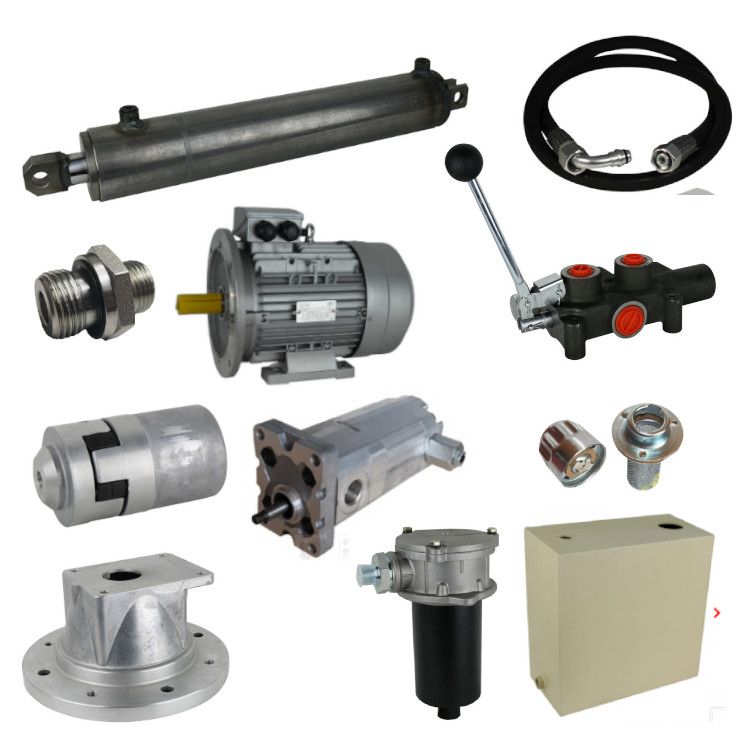

The set comes with the following parts:

• Double-acting cylinder 80x40x400 with mounting (splitting machine cylinder)
• P81RS Log splitter slide, auto-return, 2 speed function
• 3-phase electric motor 230/400 Volt 2.2 kW
• 2-stage hydraulic gear pump 1.6cc - 6.9cc group 1
• Lantern piece group 1, flange 250 mm
• Elastic coupling group 1 - 28 mm
• Steel hydraulic tank KVT with suction connection and return filter 30 liters
• Filler cap with vent mini 40µ Ø50.1mm
• Hydraulic tank return filter 1/2'' BSP, 25μ, 50 L/min
• Hydraulic tank return filter cartridge 50 l/min 25µ
• 1x 1/2" hydraulic hose custom pressed 1000mm 1/2" BSP angled - 15L straight
• 2x 1/2” hydraulic hose 1000 mm with 15L angled coupling on one side and a 15L straight coupling on the other side
• 2x 1/2” hydraulic hose 1500 mm with 15L angled couplings on one side and a 15L straight coupling on the other side
• 3 Screw coupling 3/8” BSP - 15L
• 3 Screw couplings 1/2” BSP - 15L
• 3 Screw couplings 3/4” BSP - 15 L

*Coming soon: Extensive appendix with parts specifications and installation manual!

If you require a different configuration for your splitter or need advice from a technical specialist, please do not hesitate to contact us. Contact us via chat, contact form or info@hydrauliek24.nl
